Pressure Vessels

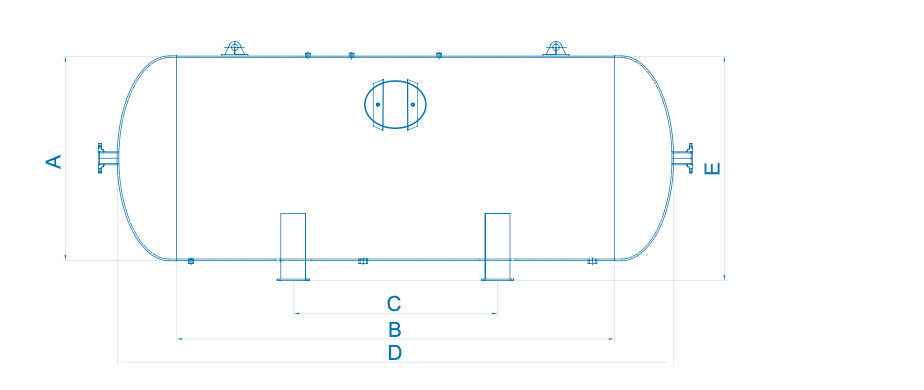

Pressure Air Tank - Horizontal








DESIGN CODES AD 2000
EN 13445
ASME SEC. VIII DIV.1
DESIGN PRESSURE 10 / 16 / 40 Bar
TEST PRESSURE 15 / 24 / 60 Bar

Technical Specifications

PRODUCT CODE VOLUME (LITERS) A (mm) B (mm) C (mm) D (mm) E max (mm)
S-HAT 100 100 323 1500 750 1750 480
S-HAT 200 200 400 1500 750 1750 550
S-HAT 300 300 550 1200 600 1560 700
S-HAT 500 500 600 1500 750 1890 750
S-HAT 750 750 750 1500 750 1930 900
S-HAT 1000 1000 850 1500 750 2000 1000
S-HAT 1500 1500 1000 1500 750 2060 1200
S-HAT 2000 2000 1150 1500 750 2140 1350
S-HAT 3000 3000 1400 1500 750 2280 1600
S-HAT 4000 4000 1600 1500 750 2400 1800
S-HAT 5000 5000 1600 2000 1000 2900 1800
S-HAT 6000 6000 1600 2500 1250 3400 1800
S-HAT 8000 8000 1600 3500 1750 4400 1800
S-HAT 10000 10000 1600 4500 2250 5400 1800

Above mentioned items are our standard products, please contact us for different sizes.

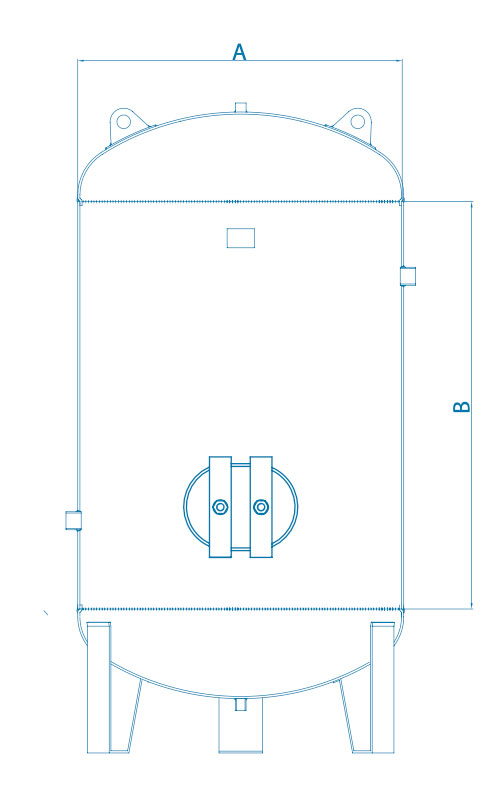

Pressure Air Tank - Vertical


Oxygen Air Tank







DESIGN CODES AD 2000
EN 13445
ASME SEC. VIII DIV.1
DESIGN PRESSURE 10 / 16 / 40 Bar
TEST PRESSURE 15 / 24 / 60 Bar


Technical Specifications

PRODUCT CODE VOLUME (LITERS) A (mm) B (mm) C (mm)
S-VAT 100 100 323 1150 1600
S-VAT 200 200 400 1500 1950
S-VAT 300 300 550 1200 1760
S-VAT 500 500 600 1500 2090
S-VAT 750 750 750 1500 2130
S-VAT 1000 1000 850 1500 2200
S-VAT 1500 1500 1000 1500 2260
S-VAT 2000 2000 1150 1500 2340
S-VAT 3000 3000 1400 1500 2480
S-VAT 4000 4000 1600 1500 2600
S-VAT 5000 5000 1600 2000 3100
S-VAT 6000 6000 1600 2500 3600
S-VAT 8000 8000 1600 3500 4600
S-VAT 10000 10000 1600 4500 5600

Above mentioned items are our standard products, please contact us for different sizes.
